6000W Output Power 1080 Wavelength Battery Laser Welding Machine with 3 Years Warranty

Brand Name:	CHEEO
MOQ:	1
Prix:	$10,000-11,000

Detail Information

Product Description

Detail Information

Lieu d'origine:

Guangdong, Chine

puissance de sortie:

6000W

Longueur d'onde laser:

1080

Poids:

500 kg

Puissance laser:

Le système de régulation de l'électricité doit être conforme à l'annexe I.

Vitesse de soudage:

10 à 100 mm/s

Précision de position:

± 0,05 mm

Fréquence de régulation:

30-5 kHz

Plage d'alimentation réglable:

10 à 100%

Exactitude de repositionnement:

± 0,01 mm

Précision de positionnement rapide:

1000 mm / sec (xyaxis) 、 500 mm / sec (zaxis)

Qualité du faisceau:

<1,4㎡

Stabilité de puissance:

≦ 3%

Laser focal focal:

F = 180 mm

Taille de usinage maximum:

800 * 600 mm / 1000 * 800

Dimension globale:

L1343xw1454xh22235 mm

Mettre en évidence:

6000W Output Power Battery Laser Welding Machine

1080 Wavelength Laser Welding Equipment

3 Years Warranty Fiber Laser Welding Machine

Product Description

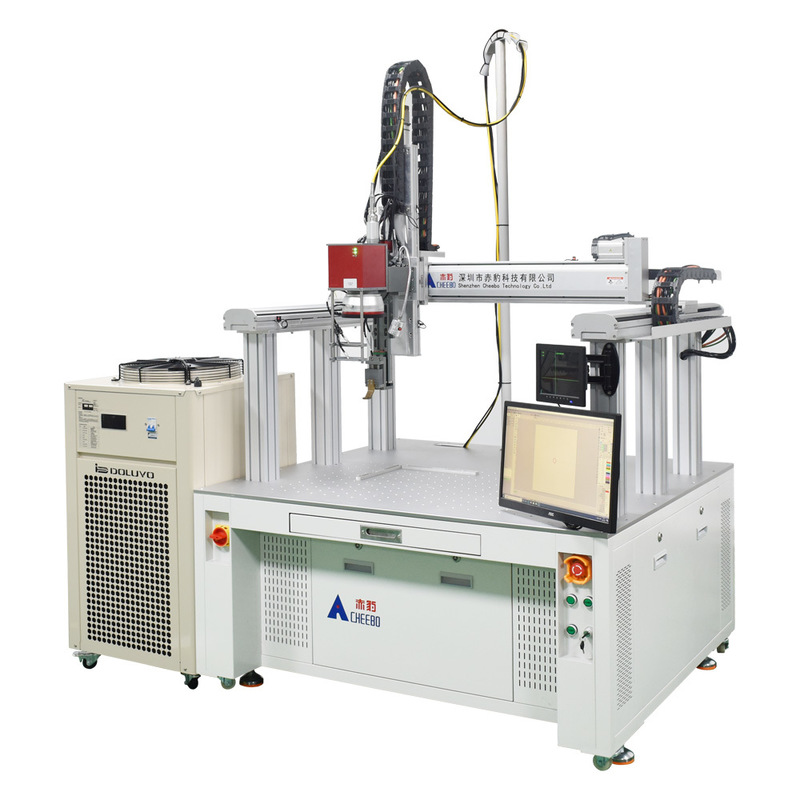

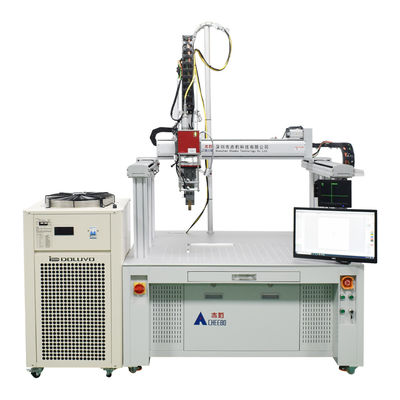

Fully Automatic Metal Laser Welding Machine

This high-performance fiber laser welding machine integrates key components including fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of welding any planar geometric shape trajectory (points, lines, circles), it delivers exceptional performance for lithium battery welding applications.

Key Features:

Advanced fiber laser source optimized for high reflective materials (aluminum)
Gantry machine tool design with superior rigidity and stability
High beam quality with excellent stability and low operating costs
Precision guide rail transmission with high-response servo motors
Fine welding spots with high melting depth and minimal heat affected zone
PC industrial computer with user-friendly CNC programming system
Adjustable laser power with low energy consumption
Optional CCD visual positioning and automatic focal length measurement

Technical Specifications:

Parameter	Value	Parameter	Value
Laser power	1500W-6000W	Welding speed	10-100mm/s
Position accuracy	±0.05mm	Laser Wavelength	1080
Regulating frequency	30-5KHZ	Adjustable power range	10-100%
Repositioning Accuracy	±0.01mm	Rapid positioning speed	1000mm/sec (XY), 500mm/sec (Z)
Coolant system	External water cooling	Operating mode	Continuous/Modulation
Beam Quality	<1.4㎡	Power stability	≦3%
Maximum machining size	800×600mm or 1000×800mm	Overall Power Consumption	3.5KW-10KW
Dimensions	1343×1454×22235mm	Machine weight	≈500KG

Product Gallery:

Frequently Asked Questions

Q: How do I choose the right model for my needs?

A: Please provide your battery model/type and welding material/thickness. Our experienced team will recommend the optimal configuration.

Q: What support is provided for machine installation?

A: We provide detailed training videos and manuals with each machine. 95% of customers successfully complete installation without additional support.

Q: Is there a minimum order quantity?

A: No MOQ - we support orders from single units to large volume purchases.

Q: How is quality controlled?

A: Each unit undergoes 20+ rigorous tests, including final welding performance verification by our QC team.

Q: What if I encounter technical issues?

A: Contact us immediately - our technical team guarantees response within 24 hours to resolve any problems.
