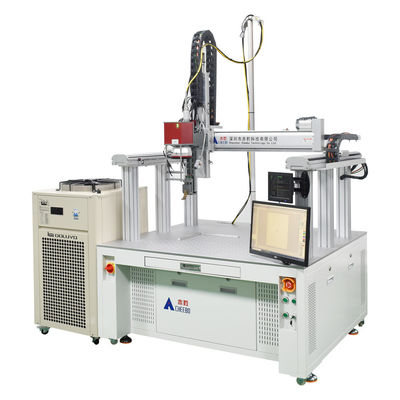

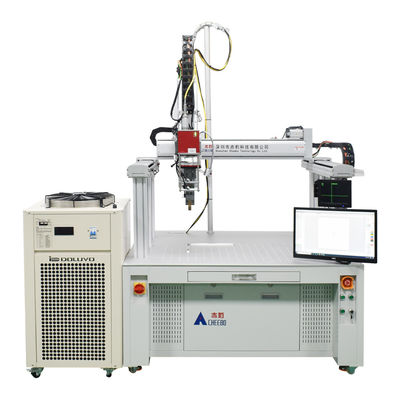

6000W High Precision Battery Laser Welding Machine with 3 Years Warranty for Lithium Battery Pack Assembly

Brand Name:	CHEEO
MOQ:	1
Prix:	$10,000-11,000

Detail Information

Product Description

Detail Information

Lieu d'origine:

Guangdong, Chine

puissance de sortie:

6000W

Puissance laser:

Le système de régulation de l'électricité doit être conforme à l'annexe I.

Vitesse de soudage:

10 à 100 mm/s

Précision de position:

± 0,05 mm

Longueur d'onde laser:

1080

Fréquence de régulation:

30-5 kHz

Plage d'alimentation réglable:

10 à 100%

Exactitude de repositionnement:

± 0,01 mm

Précision de positionnement rapide:

1000 mm / sec (xyaxis), 500 mm / sec (zaxis)

Qualité du faisceau:

<1,4㎡

Stabilité de puissance:

≦ 3%

Laser focal focal:

F = 180 mm

Taille de usinage maximum:

800 * 600 mm / 1000 * 800

Puissance globale:

3.5KW ((2000W) /5.5KW ((3000W) /8KW ((4000W) /10KW ((6000W)

Dimension globale:

L1343xw1454xh22235 mm

Mettre en évidence:

6000W Battery Laser Welding Machine

High Precision Laser Welding Platform

3 Years Warranty Lithium Battery Laser Welder

Product Description

Customized High-quality Lithium Battery Pack Laser Welding Platform

This advanced laser welding platform integrates fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of welding any planar geometric shape including points, lines, and circles, it delivers efficient, safe, and stable high-power fiber laser welding performance ideal for lithium battery applications.

Key Features

Continuous galvanometer laser welding with advanced fiber laser source, specially designed for high reflective materials (aluminum)
Gantry machine tool with excellent rigidity and stability for precise welding
High beam quality, stability, reliability, and low operating costs
High lifespan gantry dual drive motion platform with large welding range
Precision guide rail transmission with high-response servo motors
Fine welding spots with high melting depth and minimal taper
PC industrial computer with user-friendly CNC programming system
Adjustable laser power with low power consumption and minimal maintenance
Optional CCD visual positioning and automatic focal length measurement systems

Technical Specifications

Parameter	Value	Parameter	Value
Laser power	1500W/2000W/3000W/4000W/6000W	Welding speed	10-100mm/s
Position accuracy	±0.05mm	Laser Wavelength	1080
Regulating frequency	30-5KHZ	Adjustable power range	10-100%
Repositioning Accuracy	±0.01mm	Rapid positioning accuracy	1000mm/sec(XY axis), 500mm/sec(Z axis)
Coolant system	External water cooling	Operating mode	Continuous/Modulation
Beam Quality	<1.4㎡	Power stability	≦3%
Laser light output mode	CW/PWM	Laser power adjustment range	1-100
Laser focusing focal length	F=180mm	CCD positioning accuracy	0.01mm(Optional)
Maximum machining size	800600mm/1000800	Ambient temperature	5-45℃
Fiber core	20um/50pm/100pm(Optional)	Overall Power Consumption	3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W)
Overall dimension	L1343xW1454xH22235mm	Machine weight	About 500KG

Product Details

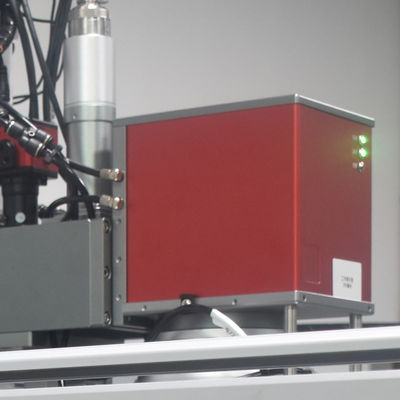

Welding Point Monitoring & Autofocus

High Precision Welding Joint

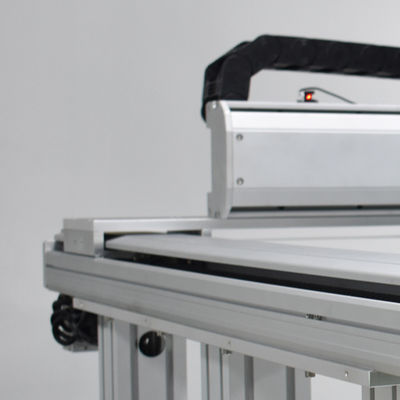

Rail Module

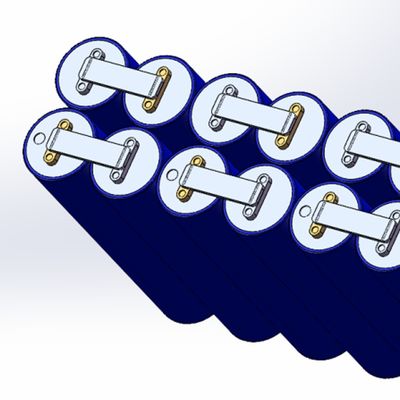

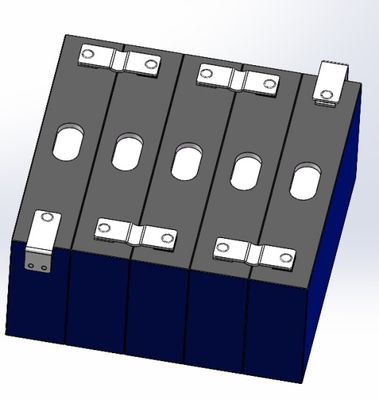

Welding Product Diagram

Frequently Asked Questions

Q: How do I know which model suits my needs?

A: Please provide: 1) Battery model and type, 2) Welding materials and thickness. Our experienced team will advise you.

Q: How is the machine installed and operated?

A: Our technicians pre-install the machine before shipping. We provide detailed training videos and manuals for minor components - 95% of customers can self-learn.

Q: What is your minimum order quantity?

A: No MOQ - we fully support orders from 1 to 100+ units.

Q: How do you ensure quality control?

A: Each unit undergoes 20+ tests. Our QC team verifies welding performance after all tests pass.

Q: What if I encounter machine problems?

A: Contact us immediately - do not attempt repairs. We respond within 24 hours to resolve issues.
