6000W Gantry Laser Welding Machine with 1080 Wavelength and 3 Years Warranty for Lithium Battery Welding

All Category

machine de soudage par points de batterie

Ligne d'assemblage des batteries

Machines à souder au laser à batterie

Machine à autocollants à batterie

Machine de test de la batterie

Accessoires de batterie

Nous contacter

Ms. Naomi Zhang

cheebo@126.com

+86 199 2880 7536

Contact Now

6000W Gantry Laser Welding Machine with 1080 Wavelength and 3 Years Warranty for Lithium Battery Welding

Brand Name:	CHEEO
MOQ:	1
Prix:	$10,000-11,000

Detail Information

Product Description

Detail Information

Lieu d'origine:

Guangdong, Chine

puissance de sortie:

6000W

Longueur d'onde:

1080

Poids:

500 kg

Puissance laser:

Le système de régulation de l'électricité doit être conforme à l'annexe I.

Vitesse de soudage:

10 à 100 mm/s

Précision de position:

± 0,05 mm

Fréquence de régulation:

30-5 kHz

Plage d'alimentation réglable:

10 à 100%

Exactitude de repositionnement:

± 0,01 mm

Précision de positionnement rapide:

1000 mm / sec (xyaxis) 、 500 mm / sec (zaxis)

Qualité du faisceau:

<1,4㎡

Stabilité de puissance:

≦ 3%

Laser focal focal:

F = 180 mm

Taille de usinage maximum:

800 * 600 mm / 1000 * 800

Dimension globale:

L1343xw1454xh22235 mm

Mettre en évidence:

6000W Gantry Laser Welding Machine

1080 Wavelength Battery Laser Welding Machine

3 Years Warranty Automatic Laser Spot Welder

Product Description

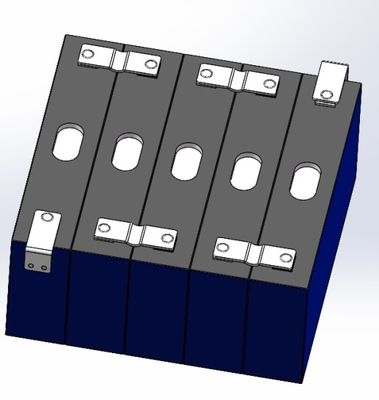

Gantry Laser Welding Machine for Prismatic Lithium Battery Pack Aluminum Nickel Busbar Automatic Laser Spot Welder

This model integrates important components such as fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. It performs welding of any planar geometric shape trajectory (points, lines, circles) and is an efficient, safe, and stable high-power fiber laser welding machine optimized for lithium battery welding processes.

Key Features

Continuous galvanometer laser welding machine with advanced fiber laser source, specially designed for high reflective materials (aluminum)
Combined with our proprietary gantry machine tool design for excellent rigidity and stability
Fiber lasers offer high beam quality, stability, reliability, low operating costs, and compact size
High lifespan gantry dual drive motion platform with large surface travel welding range
Precision guide rail transmission with high-response servo motors for fast, accurate operation
Laser welding produces fine spots, high melting depth, small taper, and smooth surfaces without bubbles
PC industrial computer with user-friendly CNC programming system
Adjustable laser power with low power consumption and minimal maintenance requirements
Optional CCD visual positioning system and automatic focal length measurement

Technical Specifications

Laser Power	1500W/2000W/3000W/4000W/6000W	Welding Speed	10-100mm/s
Position Accuracy	±0.05mm	Laser Wavelength	1080
Regulating Frequency	30-5KHZ	Adjustable Power Range	10-100%
Repositioning Accuracy	±0.01mm	Rapid Positioning Accuracy	1000mm/sec (XY axis), 500mm/sec (Z axis)
Coolant System	External water cooling	Operating Mode	Continuous/Modulation
Beam Quality	<1.4㎡	Power Stability	≦3%
Laser Output Mode	CW/PWM	Laser Power Adjustment Range	1-100
Laser Focusing Focal Length	F=180mm	CCD Positioning Accuracy	0.01mm (Optional)
Maximum Machining Size	800600mm/1000800	Ambient Temperature	5-45℃
Fiber Core	20um/50pm/100pm (Optional)	Overall Power Consumption	3.5KW (2000W)/5.5KW (3000W)/8KW (4000W)/10KW (6000W)
Overall Dimension	L1343xW1454xH22235mm	Machine Weight	About 500KG

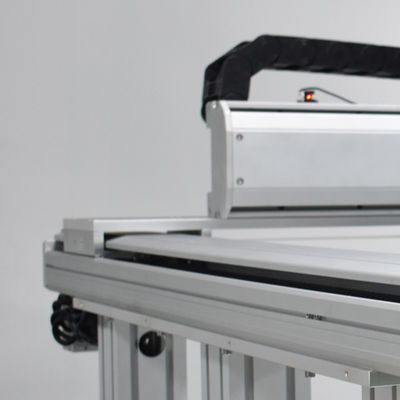

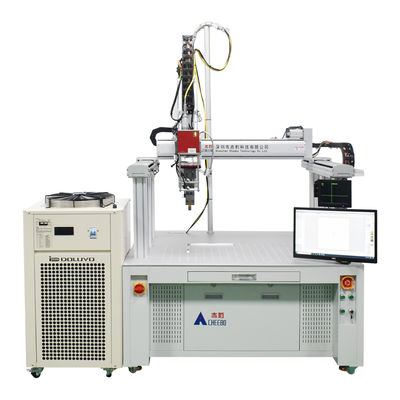

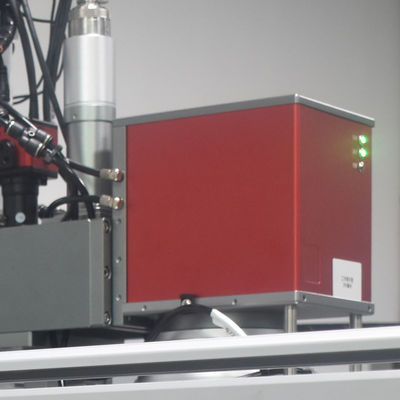

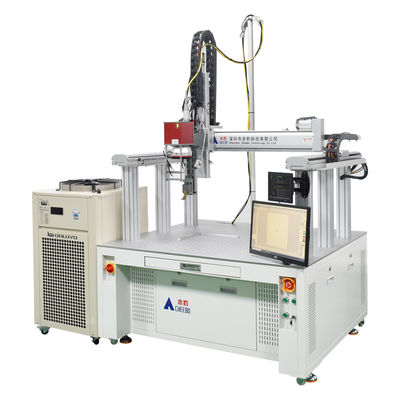

Product Images

Frequently Asked Questions

Q: I don't know which model suits my needs?

A: Please provide us with: 1) Battery model and type, 2) Welding materials and thickness. Our experienced sales team will recommend the optimal solution.

Q: How to install and operate the machine?

A: Our technicians pre-install the machine before shipping. We provide detailed training videos and manuals for minor components. 95% of customers can self-learn the operation.

Q: What is your minimum order quantity?

A: No minimum order quantity. We fully support orders from 1 unit to 100+ units.

Q: How is your quality control?

A: Quality first. Each unit undergoes 20+ tests, with final QC verifying welding performance before shipment.

Q: What if there's a problem with the machine?

A: Contact us immediately. Do not attempt repairs yourself. We guarantee a response within 24 hours to resolve any issues.
